A washing machine leaking from the bottom can be a frustrating and potentially costly problem. Not only does it create a mess, but it can also damage your floors and surrounding areas. If you notice water pooling around the bottom of your washing machine, it’s important to take immediate action to prevent further damage.
Being an environmentally conscious engineer, I understand that to have a sustainable lifestyle according to the 6Rs it is essential to attempt to repair broken appliances and buy new ones only when strictly necessary.
Given that I was able to fix my leaking washing machine several times in the past, I decided to write this guide, where I will show you how you can identify the source of the leak and provide DIY repairs to fix your leaking washing machine. By following these instructions, you can save both time and money by avoiding unnecessary service calls.
Table Of Contents
Causes of a Washing Machine Leaking From the Bottom
The first step is always to check for any visible signs of water around the washing machine and try to identify the location of the leak.
Here are the most common causes of a leaking washing machine and how to fix them:
A. Leaky Hoses
Water hoses are the most common source of leaks in washing machines. If the hoses or drain are old, damaged, or not installed correctly, water can escape from the bottom of the machine.
For top-loading washing machines, the inlet hose that connects to the valve often wears out with time and poor usage. In either case, replacing the hose is a relatively straightforward fix with a washing machine repair kit.
Run a Hose Inspection
- Start by checking the water hoses if they are the source of the leak.
- Shut off the water supply and remove the hoses from the back of the machine.
- Look for visible signs of wear and tear such as cracks, abrasions, or loose fittings.
- Replace any hose that shows signs of damage or stress with new washing machine hoses.
- Be sure to tighten the connections and check for any leaks before using the machine again.

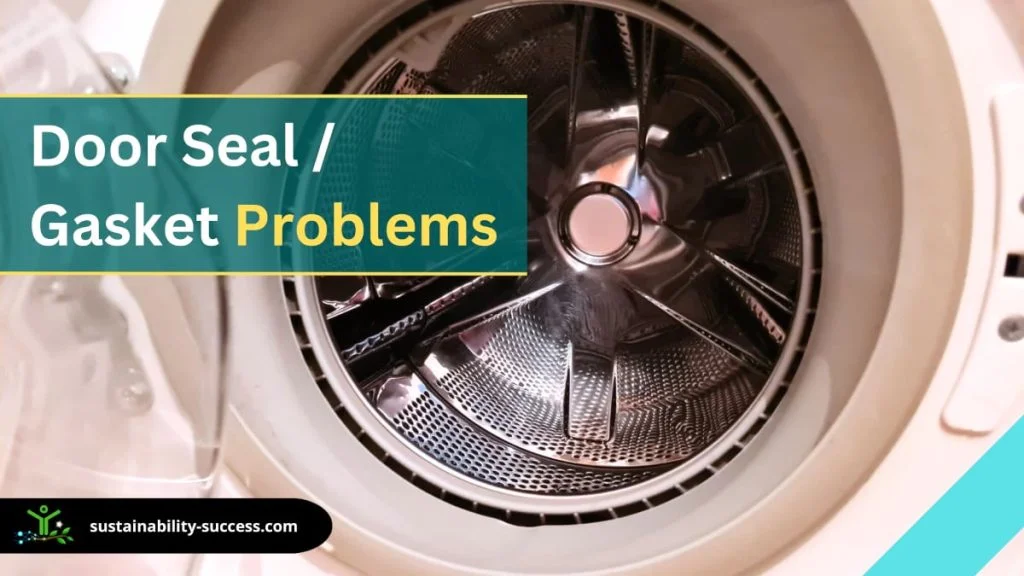

B. Door Seal/Gasket Problems
The door seal and clamps provide a watertight seal between the outer tub and the front panel. Door seal problems can cause a washing machine to start leaking from the bottom due to the following reasons:
- Broken or Damaged Seal: If the door seal/gasket is cracked, torn, or worn out, it may not create a watertight seal when the door is closed. This can result in water seeping out of the door during the wash or spin cycles and leaking onto the floor.
- Loose or Misaligned Seal: A loose or improperly aligned door seal/gasket can prevent the door from closing tightly. As a result, water can escape through the small gaps between the seal/gasket and the door, leading to leaks at the bottom of the machine.
- Debris or Obstructions: If the door seal/gasket is clogged with lint, hair, or other debris, it can affect its ability to create an effective seal. This can cause water to leak out from the door and accumulate at the bottom of the machine.
- Faulty Clamps or Retainers: In some washing machines, the door seal/gasket is held in place by clamps or retainers. If these components are loose, damaged, or missing, the seal/gasket may not be securely attached, resulting in leaks from the bottom of the machine.
- Excessive Wear and Tear: Over time, the door seal/gasket can become worn or deteriorated due to regular use, exposure to detergent and water, and the natural aging process. As a result, it may lose its flexibility and ability to create an effective seal, leading to water leaks from the bottom.

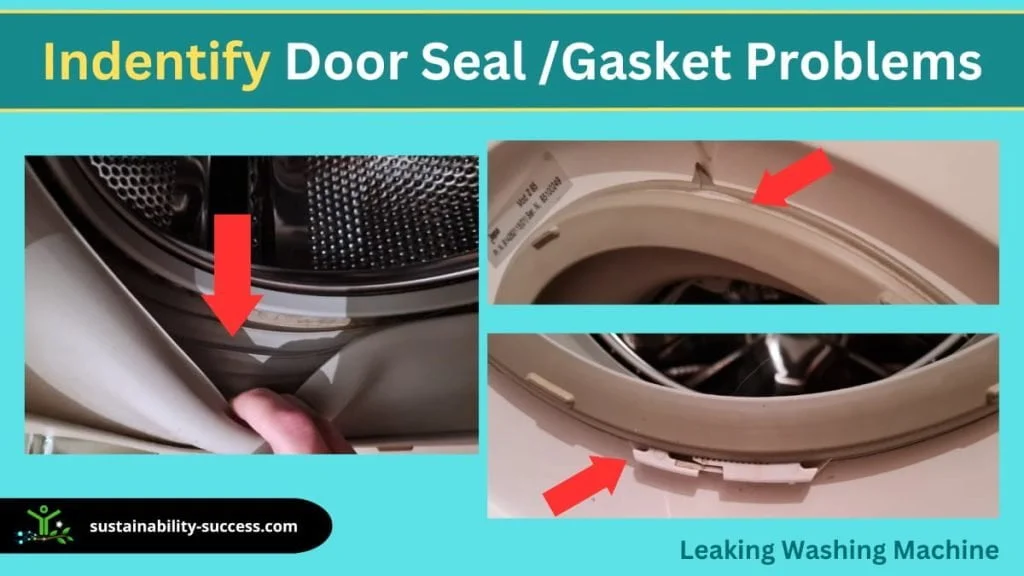

Identifying the possible cause of the leak
To identify any of the mentioned issues:
- Carefully examine the door seal for punctures or damage caused by sharp objects.
- Inspect the edges and corners for cracks or tears, as these can allow water to escape during the wash cycle.
- Check the clamps for rust or damage; if necessary, replace the seal and clamps.
Necessary Materials & Tools
- Replacement door seal/gasket (make sure it’s compatible with your specific washing machine model)
- Screwdriver (type may vary depending on the screws used in your machine)
- Towels or rags for cleanup
- Mild detergent or soap for cleaning
How to Fix Door Seal/Gasket Problems?
1. Disconnect the washing machine. Unplug the machine from the power outlet to ensure safety.
2. Access the door seal/gasket. Open the door and locate the outer edge of the door seal/gasket. Depending on your washing machine model, you may need to remove the top panel or front panel to access the seal/gasket. Consult your machine’s user manual or search online for specific instructions for your model.
3. Remove the damaged seal/gasket. Once you have access to the seal/gasket, carefully examine it to understand how it is attached and secured. Use a screwdriver or other appropriate tools to remove any screws or clips holding the seal/gasket in place. Take note of the seal/gasket orientation and how it fits into the machine.
4. Clean the area. Before installing the new seal/gasket, clean the area thoroughly to ensure a proper seal. Wipe away any dirt, debris, or residue from the door and surrounding surfaces using a mild detergent or soap and a damp cloth. Dry the area completely with a clean towel or rag.
5. Install the new door seal/gasket. Carefully position the new door seal/gasket in the correct orientation, aligning it with the door opening. Refer to your machine’s user manual or online resources for any specific instructions or tips regarding the installation process. Secure the new seal/gasket in place using the appropriate screws or clips.
6. Double-check the installation. Ensure that the seal/gasket is properly fitted and secured without any gaps or misalignment. Check that the door closes smoothly and forms a tight seal when latched.
7. Reassemble and test the washing machine. If you had to remove any panels during the process, reattach them securely according to the manufacturer’s instructions. Plug the washing machine back into the power outlet. Run a short test cycle to check for any leaks or abnormalities. Monitor the machine closely during this test cycle to ensure that water does not leak from the door seal/gasket.
C. Pump and Tub Seal Issues
Pump and tub seal issues can lead to leaks in a washing machine, specifically causing water to leak from the bottom. Here’s how these problems can cause leaks:
- Pump Seal Issues: The drain pump in a washing machine is responsible for removing water from the tub during the drain and spin cycles. If the pump seal is damaged or worn out, it can result in water leaking from the pump area. Common causes of pump seal leaks include a bad seal or a crack in the pump body. Water may also leave a dry white residue on the pump where it has been leaking.
- Tub Seal Issues: The tub seal plays a crucial role in preventing water from leaking out of the tub. In front-load washers, there is an additional seal that goes between the two halves of the outer tub. If the tub seal is faulty, water can escape from the tub and flow down onto the gearcase. This may cause water marks on the inside of the cabinet walls or dripping from the bottom.
When these seals are compromised, water can escape during the washing machine’s operation, resulting in leaks. It’s important to address these issues promptly to prevent further damage and water leakage.
Repairing these problems typically involves replacing the damaged seals with new ones. It may require accessing the pump or disassembling parts of the washing machine to reach the tub seal.
It’s recommended to consult the manufacturer’s instructions or seek professional assistance if you’re unsure about the repair process. Remember to always unplug the washing machine and turn off the water supply before attempting any repairs.
Necessary Materials & Tools
- Replacement drain pump
- Replacement tub seal (if applicable)
- Screwdriver or nut driver
- Towels or rags
- Container or bucket
How to repair the pump and tub seal leaks

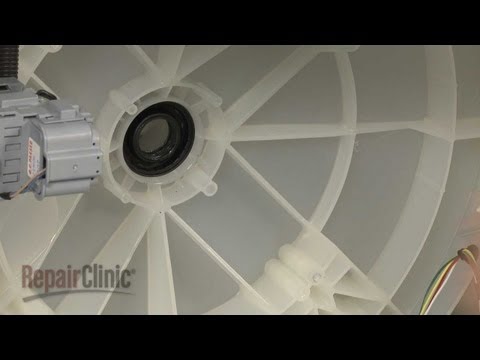

Here’s how to fix the tub seal of a leaking washing machine:
And here’s how to proceed:
- Access the Drain Pump and Tub Seal. Depending on your washing machine model, you may need to remove the front or rear panel to access the internal components. Locate the drain pump, which is typically located at the bottom of the machine. Also, identify the tub seal if it’s visible and accessible.
- Replace the Drain Pump. Disconnect the electrical connectors and wiring harness from the drain pump. Take note of their positions for reinstallation. Use pliers or a screwdriver to loosen and remove any clamps securing the hoses connected to the pump. Have a container or bucket ready to catch any water that spills out. Once the hoses are detached, remove the mounting screws or brackets that hold the pump in place. Take out the old drain pump and replace it with a new one. Secure the new pump using the mounting screws or brackets.
- Inspect and Replace the Tub Seal (if applicable). If your washing machine has a visible tub seal, carefully examine it for any signs of damage, wear, or leakage. If the tub seal is compromised, it’s recommended to replace it by following the manufacturer’s instructions. This repair may require additional disassembly of the machine and specialized tools.
- Reconnect the Drain Pump and Hoses. Attach the hoses back onto the new drain pump, ensuring they are properly aligned and secure. Use clamps to fasten the hoses tightly to prevent any leaks. Reconnect the electrical connectors and wiring harness to the new drain pump, ensuring they are correctly positioned.
- Test for Leaks. Double-check all the connections, making sure they are tight and secure.
- Turn on the water supply and plug in the washing machine. Run a test cycle to observe if any leaks are present. Monitor the area around the drain pump and tub seal for any signs of leakage.
- Clean Up and Reassemble. If there are no leaks, carefully clean up any spilled water or moisture using towels or rags. Once everything is dry, reassemble the washing machine by replacing the front or rear panel.

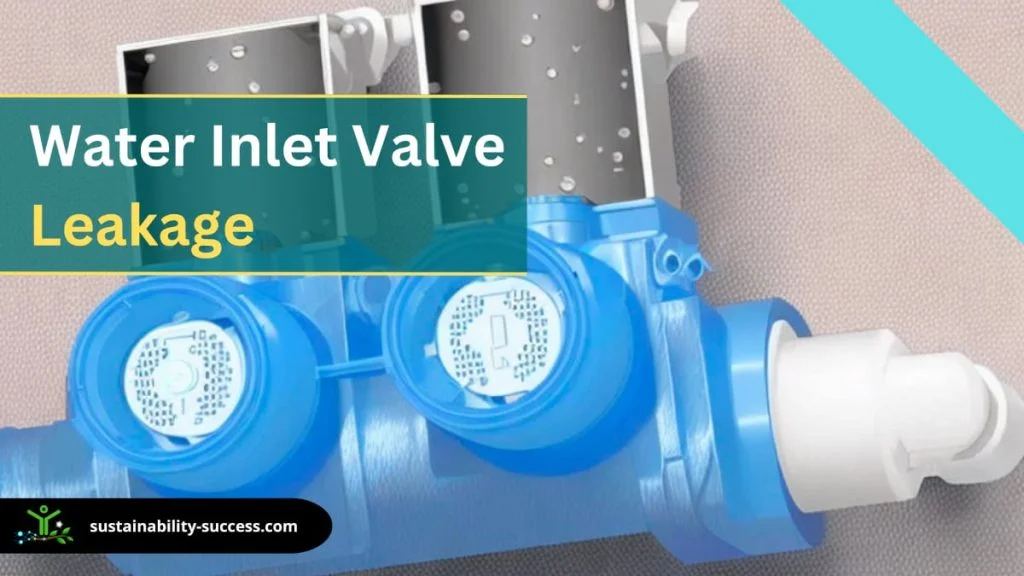

D. Water Inlet Valve Leakage
Water inlet valve leakage can cause a washing machine to start leaking from the bottom due to the following reasons:
- Failed Seal: The water inlet valve is responsible for controlling the flow of hot and cold water into the washing machine during different cycles. If the seal inside the valve becomes worn out or damaged, it may fail to create a watertight seal. As a result, water can leak out from the valve and drip down to the bottom of the machine.
- Cracked or Damaged Body: The body of the water inlet valve can develop cracks or damage over time, especially if it’s made of plastic or has been subjected to excessive pressure or wear. These cracks can cause water to escape from the valve and result in leaks at the bottom of the washing machine.
- Loose Connections: The water inlet valve is typically connected to the water supply hoses at the back of the washing machine. If these connections are loose or not properly secured, water can leak out from the valve and seep down to the bottom of the machine.
- Malfunctioning Valve Diaphragm: Some water inlet valves have a diaphragm that controls the water flow. If the diaphragm becomes faulty or develops a hole, it can cause water to leak out of the valve and lead to leaks at the bottom of the washing machine.
The water inlet valve is usually located on the back panel of the washer where the fill hoses are connected. To check whether it has any issues, look for signs of deterioration or loose fittings.
Necessary Materials & Tools
- Replacement water inlet valve
- Adjustable wrench
- Towels or rags
- Container or bucket
How to replace a water inlet valve
Replace the washing machine water inlet valve if it is leaking. Before starting any repairs, ensure that the washing machine is unplugged and the water supply is turned off.
- Disconnect the Water Supply. Using an adjustable wrench, carefully loosen and disconnect the hot and cold water supply hoses from the water inlet valve. Have a container or bucket ready to catch any residual water that may spill out from the hoses.
- Access the Water Inlet Valve. Remove the top or rear panel of the washing machine, depending on the model, to access the internal components. Locate the water inlet valve, which is usually located at the back of the machine where the water supply hoses are connected.
- Remove the Water Inlet Valve. Identify the electrical connectors and wiring harness attached to the water inlet valve. Disconnect these connectors and carefully take note of their positions for reinstallation later. Using pliers or an adjustable wrench, remove any mounting screws or brackets securing the water inlet valve to the machine. Gently pull the valve away from the mounting and detach it completely.
- Install the New Water Inlet Valve. Take the replacement water inlet valve and align it with the mounting position. Secure the valve in place using the mounting screws or brackets removed earlier. Reconnect the electrical connectors and wiring harness, ensuring they are properly seated and in the correct positions.
- Reconnect the Water Supply. Attach the hot and cold water supply hoses to the corresponding inlet ports on the new water inlet valve. Use an adjustable wrench to tighten the connections, ensuring they are snug but not over-tightened. Double-check all the connections and ensure everything is properly secured. Turn on the water supply and inspect the newly installed valve for any signs of leakage. If no leaks are observed, carefully place the machine’s panel back into position.
- Clean Up and Plug-In. Clean up any spilled water or moisture using towels or rags.
Once everything is dry, plug in the washing machine, restore power, and check if everything is working correctly without leaking.
Other possible issues requiring professional help

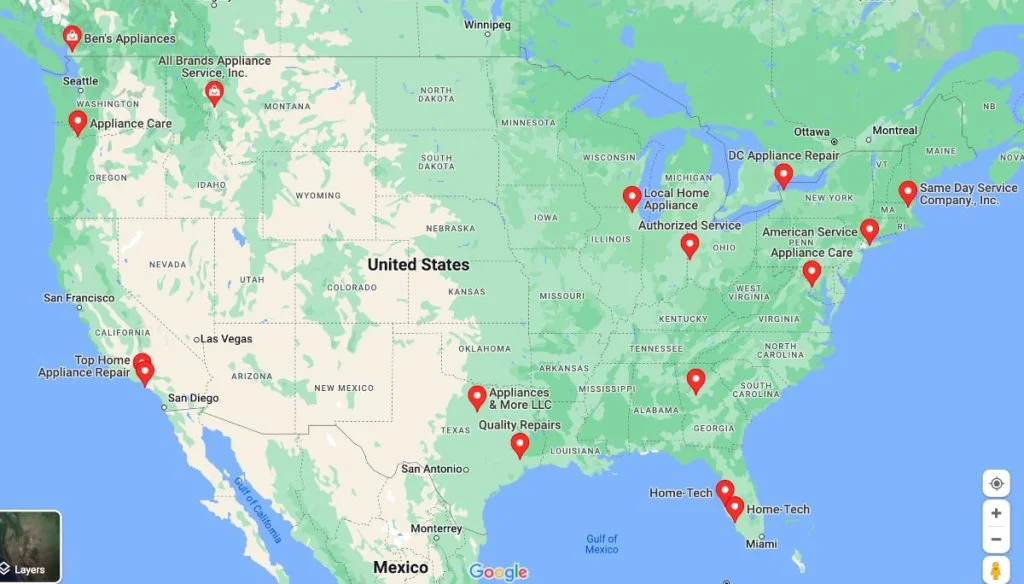

If you need professional help to repair your washing machine that is leaking from the bottom, the best way is to use google maps. Just click on the map below for a washing machine repair near me and contact a local handyman.
Pulley Seal Leaks
Another reason that causes water leakage from the bottom of the machine is when the pulley seal is faulty. The seal is intended to prevent water from entering the bearings that control the drive system. If it fails or breaks, water can seep from the bottom, indicating a possible seal leak. A professional repair or replacement is generally required to rectify this issue.
Pressure Switch Miscommunication
The pressure switch, a crucial component of the washing machine, senses water levels inside the tub. If it fails to detect the water level correctly or signals the water inlet valve to open when the tub is already full, it can cause an overflow and leakage from the bottom. Depending on the severity of the damage, the pressure switch may need to be replaced or repaired.
Preventing leaks in your washing machine starts with regular maintenance and care. Here are a few preventive measures you can take to avoid leakage:
Be Observant for Any Signs of Leakage
It is essential to keep an eye out for any signs of a possible leak, such as water on the floor near the appliance or dampness on the walls behind the machine. Another sign could be a musty smell coming from the washing machine, which indicates mold growth. If you notice any of these signs, it is time to take action to prevent the leak from becoming worse.
Clean the Washing Machine Regularly
Regular cleaning of your washing machine can help prevent clogs that can lead to leaks. It is best to clean the machine every few weeks, particularly the detergent dispenser, drum, and gasket. Additionally, pay close attention to the edges and inspect the seal for punctures or trapped items. A dirty or damaged gasket can cause water to leak out of your machine.
Check Hoses for Wear and Tear
- It’s important to conduct regular inspections on the hoses that are connected to your washing machine.
- When inspecting the hoses, ensure to check for any damages on the hose washers.
- If the hose washers are damaged, it’s pertinent to replace them with new ones and securely reattach them to the hoses.
- Additionally, examine the hoses themselves for signs of degradation, such as wear and tear, and replace them when necessary.
- Often, hoses develop cracks or become brittle over time, which can cause water leaks. Hence, it’s essential to replace them before such incidents occur.
Use the Right Detergent
Excessive use of laundry detergent can create an overflow of water, caused by an abundance of suds. The optimal quantity of detergent is determined by the washer type and the concentration of the cleaning agent. If your water is soft, you’ll require less detergent. As a handy tip, you can test whether you are using too much detergent by immersing a freshly laundered item in hot water before drying it. If the water becomes bubbly, it’s an indication that you’ve used an excessive amount of detergent.
When to Call a Professional
Sometimes fixing a leaking washing machine requires professional help. Here are two instances where calling a professional is advisable:
Seek Professional Help If DIY Solutions Don’t Work
If you’ve tried every solution you can think of, but your washing machine is still leaking, it might be time to call a professional. A qualified technician can diagnose the issue, recommend the right parts, and fix the problem before it gets worse.
DIY Repairs May Not Be Advisable If Rusting Is Severe
If you notice significant rust on the underside of your washing machine, it may not be safe to try and fix the leak yourself. Attempting DIY repairs can be dangerous, and you might end up causing more damage than good. In such situations, it is better to call a professional who can assess the extent of the damage and recommend a safe fix.
What occurs with an overloaded washing machine?
If you cram too many clothes into your washing machine, you’re likely to run into some issues. Your machine might experience leaks, leading to potential water damage. Additionally, overloading the machine can reduce its efficiency, meaning that your clothes won’t get as clean, and it will use more energy overall. To avoid these problems, make sure not to stuff your machine to its limit, and follow the manufacturer’s instructions for loading.
A leaking washing machine is a problem that should be addressed promptly to prevent further damage.
By following the step-by-step instructions outlined in this guide, you can troubleshoot and repair the most common causes of leaks from the bottom of your washing machine.
Remember to prioritize safety by disconnecting the appliance from power and water sources before attempting any repairs. While many issues can be resolved with DIY methods, it is important to know your limitations.
If you’re unsure or uncomfortable with a repair, it’s best to seek professional assistance. By being proactive and addressing the issue promptly, you can restore your washing machine’s functionality and ensure hassle-free laundry days ahead.
